TUN-8半自动锯条闪光对焊机 木工锯条闪光对焊机

价格：4888元/台 产地：广州 品牌：通骏 型号：TUN-8 规格：TUN-8 广州市通骏机械设备有限公司 在线咨询

详情介绍更新时间：2017/4/13 10:45:08

整机特点：

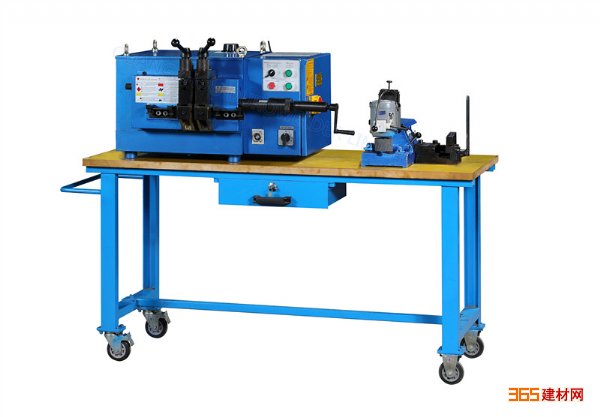

是一种具有程序控制的闪光焊接设备，整套设备由焊接主机、锯条剪切器和焊缝打磨机组成。
是带锯条生产必不可少的设备之一，具有焊接、退火之间程序自控，顶锻压力、焊接电压、退火温度、退火时间等外部可调节等功能，适用于普通钢带、高合金钢带、各类带锯条和带刀的对焊，焊接定位精确，操作方便，焊接牢靠，退火后硬度适当，质量可靠，不需要任何焊剂。
原理简述：
本机是根据电热效应的原理，利用连接到变压器次级两端的焊台，使夹持在两焊台上的锯条两端接触形成闭合回路。电流接通后，由于接触点上的电阻和电流密度都很大，金属被迅速加热溶化，并以连续激烈的火花状炸裂，构成整个熔化过程，在此同时由于受顶锻力的作用，焊机夹头以一定规律送进焊件，并适时切断电源，已溶化的金属从焊区挤压出，使焊件溶为一体，从而获得优良的焊体。

Features of the Machine：
TUN-8 semi-automatic saw blade welding machine is a kind of program-controlLED flash welding equipment. It is one of the indispensable equipment for the production of band saw blade. It has the functions of self-control between welding and annealing, forging pressure, welding voltage, annealing temperature, Annealing time and other external adjustable function for ordinary steel, high alloy steel, with all kinds of band saw blade and knife butt welding, welding positioning accuracy, easy to operate, reliable welding, the appropriate hardness after annealing, reliable quality, not Requires any flux.
Principle description:
This machine is based on the principle of electrothermal effect, using the soldering station connected to both ends of the transformer secondary, so that the two ends of the saw blade clamped in the two ends of the contact form a closed loop. After the current is switched on, the resistance and current density at the contact point are large, the metal is quickly heated to melt, and continuous intense spark-like burst to form the entire melting process, at the same time due to the role of forging force, welding Machine chuck to a certain law into the weldment, and timely cut off the power, the molten metal has been extruded from the welding area, so that pieces dissolved as a whole, in order to obtain good welding body.

主要技术参数Main Technical Parameter
额定电压/额定频率 Rated Voltage/Rated Frequency 380V 50/60HZ
额定容量 Rated Power 8KVA
额定负载率　　　　 Rated Duty Cycle 18％
次级空载电压  Transformer secondary voltage 3-5.5V
*大顶锻力 Max Upsetting Force 2.5KN
*大对焊宽度 木工带锯条 Max Butt Welding Width Wood-cutting Bandsaw Blade  3-50mm
 双金属带锯条  Bi-metal Bandsaw Blade  3-42mm
 钨合金带锯条  Tungsten Alloy Bandsaws Blade  3-42mm
 不锈钢带锯条  Stainless Steel Bandsaw Blade 4-35mm
 高速钢带锯条  H.S.S Bandsaw blade  4-35mm
 皮革和泡沫刀片  Band knives for leather and foam  4-50mm
 普通铁片钢带  Steel Strip 3-50mm
 设备重量 Welder Approx.Weight 280KG
 外形尺寸 Over Dimension 780*600*515MM
