5WB15d豆胆灯

价格：电询 产地：中国厦门 品牌：LEDE 型号：AR0501 厦门砺德光电科技有限公司 在线咨询

详情介绍更新时间：2014/9/9 20:52:00

  　　　　　　　　　　 Version:A01
1 General Data
1.1 Rated Voltage [V] AC/DC12
1.2 Wide Voltage Range[V] 10.5~14
1.3 Frequency [Hz] 50/60
1.4 Lamp Wattage [W] 5(+10％/-15％)
1.5 Lamp Current [mA] 600
1.6 Power Factor 0.7
1.7 LED chip brand Sharp
1.8 Dimming Range Non-dimmable
2 Light Data [Initial]
2.1 Beam angle 24°/35°
2.2 Light intensity[cd] 850/550
2.3 Equivalent Lumen Output[lm] 250
2.4 Color Temperature [K] 2700/3000/4000/5000
2.5 Comparsion Wattage 20W 12V Halogen AR70
2.6 Color Rendering Index 85
2.7 Operating temperature range[℃] -30 to +40
2.8 Projected Lumen Maintenance @ 30,000 hours [％] 90
3 Life Time [at 12V, lot size min. 20 units]
3.1 Life Time at 12V, 25℃ [h] 40,000
3.2 Switching cycle up to 50％ failure (30s on, 30s off) [cycles] Unlimited

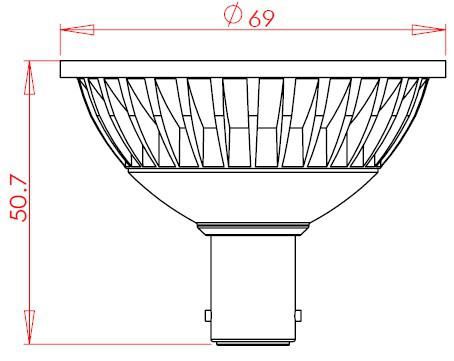

4 Geometrical Data
4.1 LED Number 1
4.2 Diameter (D) [mm] 69
4.3 Length (L) [mm] 50.7±1
4.4 Weight [g] N/A
4.5 Base B15d
4.6 RoHS CE/Compliant
5 Technical Data
5.1 Safety Requirement According to IEC/EN60968
  According to IEC/EN62031
5.2 Performance Requirement According to IEC/ENC60969
5.3 Photobiological Safety according to IEC/EN62471
5.4 EMC Requirement according to IEC/EN55015
  according to IEC/EN61547
  according to IEC/EN61000-3-2
  according to IEC/EN61000-3-3
5.5 Approvals CE
5.6 Color of plastic component Grey/To be determined
6 Special Values
6.1 Flammability of plastic component 94-HB
6.2 Transparent lamp cover removal safety Torque 3Nm, 3kg pull force
6.3 Connection pins removal safety 6kg pull force,3kg side force
